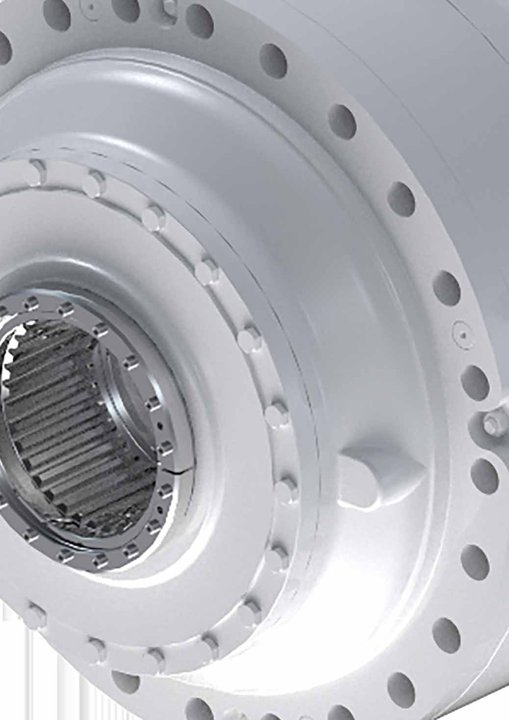

Bonfiglioli 3/H Series heavy-duty modular gear unit, frame size 3/H17, supplied by Twin Hydraulics Engineering — authorised drive-technology stockist in Malaysia. Robust helical / bevel-helical industrial gear unit for high-torque applications such as mixers, conveyors, crushers, extruders and mill drives.
| Brand | Bonfiglioli |
| Series | 3/H (heavy-duty modular gear unit) |
| Frame size | 3/H17 |
| Max output torque (M₂max) | 242,000 Nm |
| Rated output torque (Mn2max) | 196,640 Nm |
| Reduction ratios | 30.6:1 – 1160:1 (series range) |
| No. of reductions | 2 or 3 stages (L2 / L3) |
| Configuration | Parallel shaft or right-angle (bevel-helical) |
| Input | IEC (112–315) or NEMA motor adapter, or free input shaft |
| Output | Solid / hollow shaft, splined or friction-coupling |
| Options | Backstop device, forced lubrication, thermal cooling/heating, sensors |
| Availability | Ex-works / on request — request a quote |
Download 3/H Series Selection Guide (PDF)
Full 112-page technical catalogue available on request. Send us your torque, ratio, configuration and mounting and we’ll confirm the exact unit and price.
