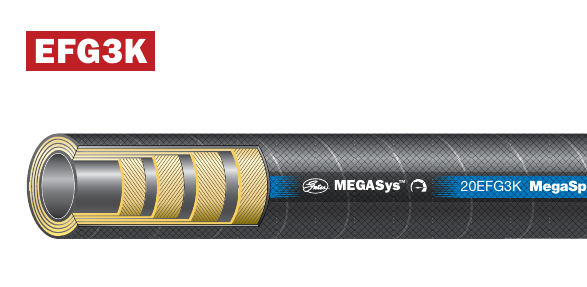

Gates EFG3K MegaSys MegaSpiral hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: Extremely high pressure, high-impulse hydraulic applications.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | CR (Chloroprene) based. MSHA approved. |
| Temperature | -40°C to +121°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 3000 psi |
| Standards | Exceeds ISO 3862 R12. EN 856 R12. SAE 100R12. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -20 | DN31 | 3000 psi | 12000 psi | 20EFG3K |
| -24 | DN38 | 3000 psi | 12000 psi | 24EFG3K |
| -32 | DN51 | 3000 psi | 12000 psi | 32EFG3K |
