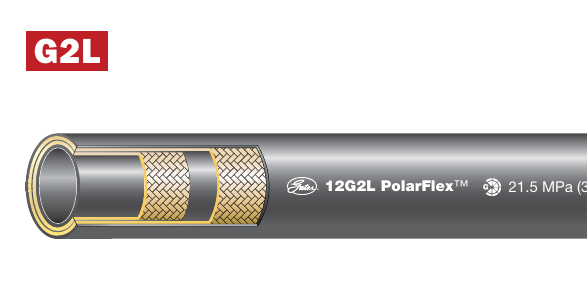

Gates G2L MegaSys Low Temp hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: High pressure hydraulic applications at extremely low temperatures.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | CR (Chloroprene) based. MSHA approved. |
| Temperature | -57°C to +100°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 5800 psi |
| Standards | Exceeds ISO 1436 2SN R2ATS. EN 853 2SN. SAE 100R2AT. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -4 | DN6 | 5800 psi | 23200 psi | 4G2L |
| -6 | DN10 | 4800 psi | 19200 psi | 6G2L |
| -8 | DN12 | 4000 psi | 16000 psi | 8G2L |
| -10 | DN16 | 3625 psi | 14500 psi | 10G2L |
| -12 | DN19 | 3100 psi | 12400 psi | 12G2L |
| -16 | DN25 | 2400 psi | 9600 psi | 16G2L |
| -20 | DN31 | 1825 psi | 7300 psi | 20G2L |
| -24 | DN38 | 1300 psi | 5200 psi | 24G2L |
| -32 | DN51 | 1175 psi | 4700 psi | 32G2L |
