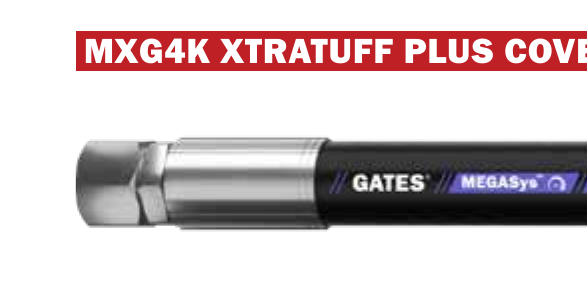

Gates MXG4K MegaSys XpiraL hydraulic hose, supplied by Twin Hydraulics Engineering.
| Brand | Gates |
| Tube | NBR (nitrile) based. |
| Cover | Black, XtraTuff Plus synthetic rubber. MSHA approved. |
| Temperature | -40°C to +121°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 4000 psi |
| Standards | Exceeds ISO 18752 280DC (GS couplings). Exceeds ISO 18752 280CC (G couplings). SAE 100R19. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -6 | DN10 | 4000 psi | 16000 psi | 6MXG4K-XTP |
| -8 | DN12 | 4000 psi | 16000 psi | 8MXG4K-XTP |
| -10 | DN16 | 4000 psi | 16000 psi | 10MXG4K-XTP |
| -12 | DN19 | 4000 psi | 16000 psi | 12MXG4K-XTP |
| -16 | DN25 | 4000 psi | 16000 psi | 16MXG4K-XTP |
| -6 | DN | psi | psi | GS1F-2 |
| -8 | DN | psi | psi | GS1F-2 |
| -10 | DN | psi | psi | GS1F-2 |
| -12 | DN | psi | psi | GS1F-2 |
| -16 | DN | psi | psi | GS1F-4 |
