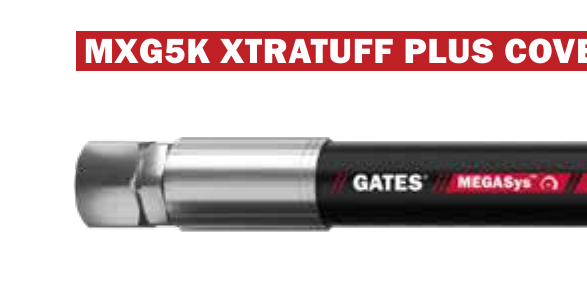

Gates MXG5K MegaSys XpiraL hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: High pressure hydraulic applications. Compact and flexible, easy to route and install in tight areas.
| Brand | Gates |
| Tube | NBR (nitrile) based. |
| Cover | Black, XtraTuff Plus synthetic rubber. MSHA approved. |
| Temperature | -40°C to +121°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 5000 psi |
| Standards | Exceeds ISO 18752 350DC (GS couplings). Exceeds ISO 18752 350CC (G couplings). |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -6 | DN10 | 5000 psi | 20000 psi | 6MXG5K-XTP |
| -8 | DN12 | 5000 psi | 20000 psi | 8MXG5K-XTP |
| -10 | DN16 | 5000 psi | 20000 psi | 10MXG5K-XTP |
| -12 | DN19 | 5000 psi | 20000 psi | 12MXG5K-XTP |
| -6 | DN | psi | psi | 6GS1F-2 |
| -8 | DN | psi | psi | 8GS1F-2 |
| -10 | DN | psi | psi | 10GSID1F-4 |
| -12 | DN | psi | psi | 12GS1F-2 |
