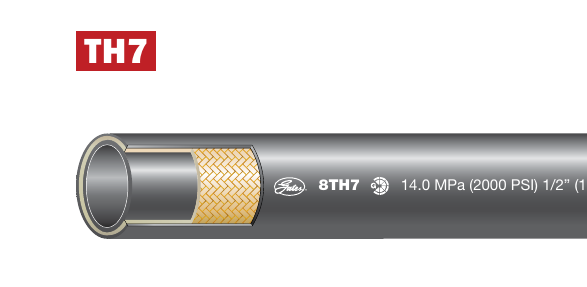

Gates TH7 MegaSys Thermoplastic hydraulic hose, supplied by Twin Hydraulics Engineering.
| Brand | Gates |
| Tube | PA (Nylon) based. |
| Cover | PU (Polyurethane) based. Black TH7 is perforated for use in general hydraulic and pneumatic service. |
| Temperature | -53°C to +93°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 3000 psi |
| Standards | Exceeds ISO 3949 R7. EN 855 R7. SAE 100R7. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -3 | DN5 | 3000 psi | 12000 psi | 3TH7S |
| -4 | DN6 | 2750 psi | 11000 psi | 4TH7S |
| -5 | DN8 | 2500 psi | 10000 psi | 5TH7S |
| -6 | DN10 | 2250 psi | 9000 psi | 6TH7S |
| -8 | DN12 | 2000 psi | 8000 psi | 8TH7S |
| -12 | DN19 | 1250 psi | 5000 psi | 12TH7 |
| -16 | DN25 | 1000 psi | 4000 psi | 16TH7 |
