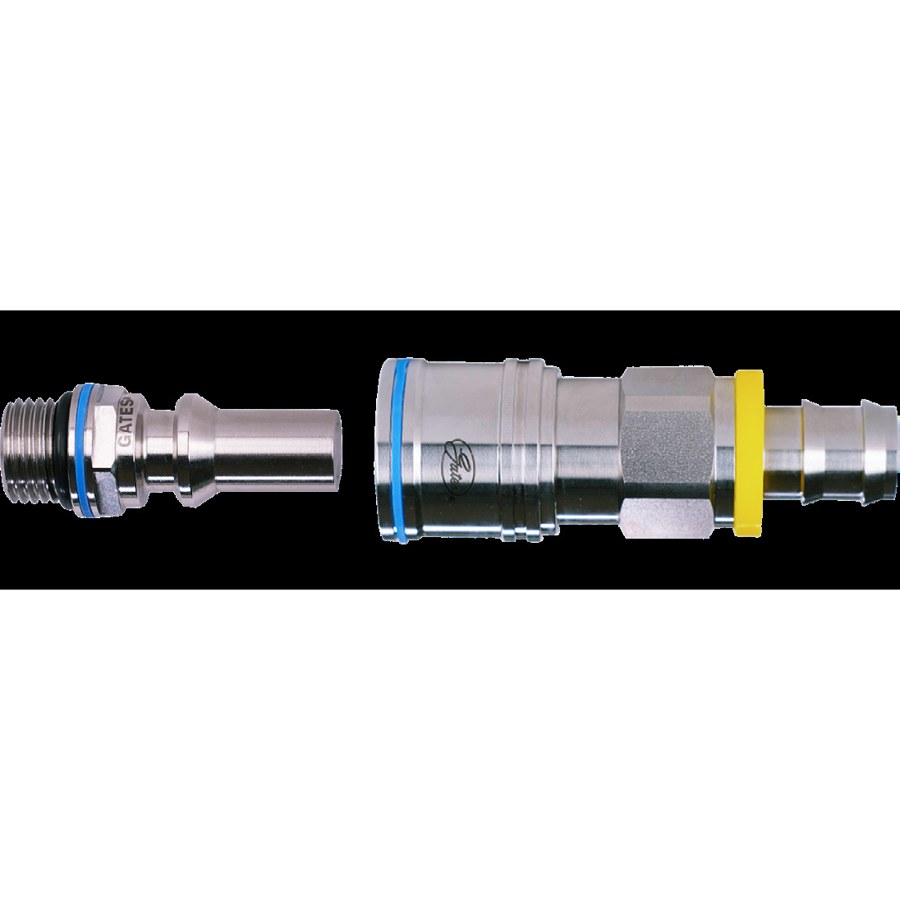

Gates UQD04 Universal Quick Disconnect (UQD) coupling for data centre liquid cooling. OCP-compliant, dry-break disconnection under pressure, in 316L stainless steel with EPDM seals.
| Brand | Gates |
| Series | UQD (Universal Quick Disconnect) |
| Size | UQD04 |
| Nominal diameter DN | 05 mm |
| Min. Cv | 1.53 |
| Body material | 316L stainless steel |
| Seal material | EPDM |
| Max working pressure | 290 psi (20 bar) |
| Min burst pressure | 1,160 psi (80 bar) |
| Temperature range | -40°C to +120°C |
| Terminations | Barb or threaded (ORB); socket & plug |
| Compliance | OCP-aligned, compatible with Data Master hose |
| Availability | On request — request a quote |
