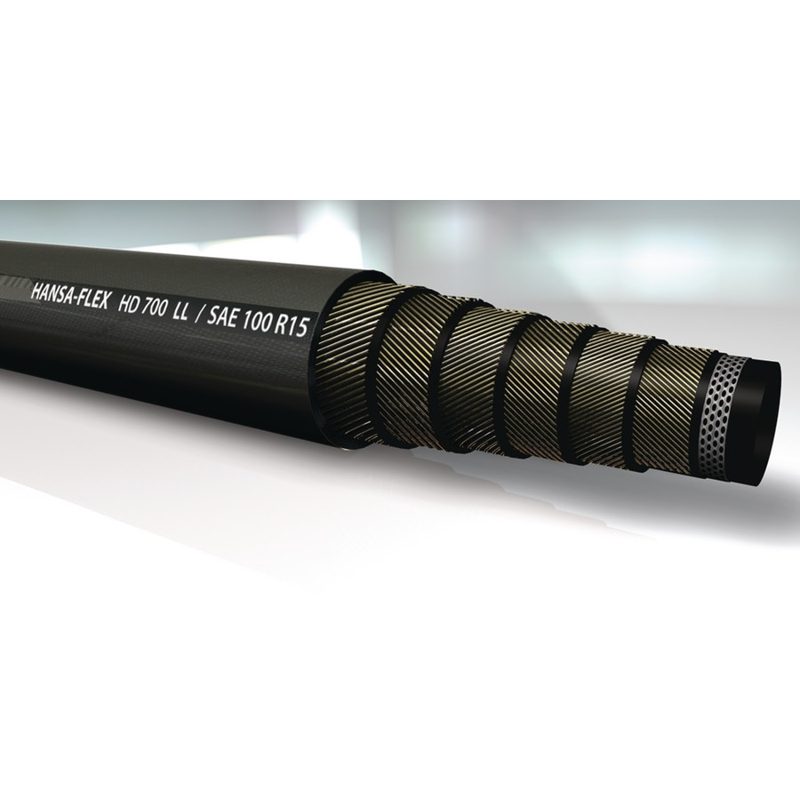

HANSA-FLEX HD 700 LL hydraulic spiral hose, supplied by Twin Hydraulics Engineering.
About this hose: Spiral hose, SAE100 R15, Long Life.
| Brand | HANSA-FLEX |
| Series | HD 700 LL |
| Type | Spiral Hose |
| Standard | SAE 100 R15 |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | six spirals of extreme high-tensile steel wire |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| HD 732 LL | 31 | 1.1/4″ | 450 bar | 1,800 bar | 336 mm |
| HD 740 LL | 38 | 1.1/2″ | 420 bar | 1,680 bar | 400 mm |
| HD 750 LL | 51 | 2″ | 420 bar | 1,680 bar | 504 mm |
