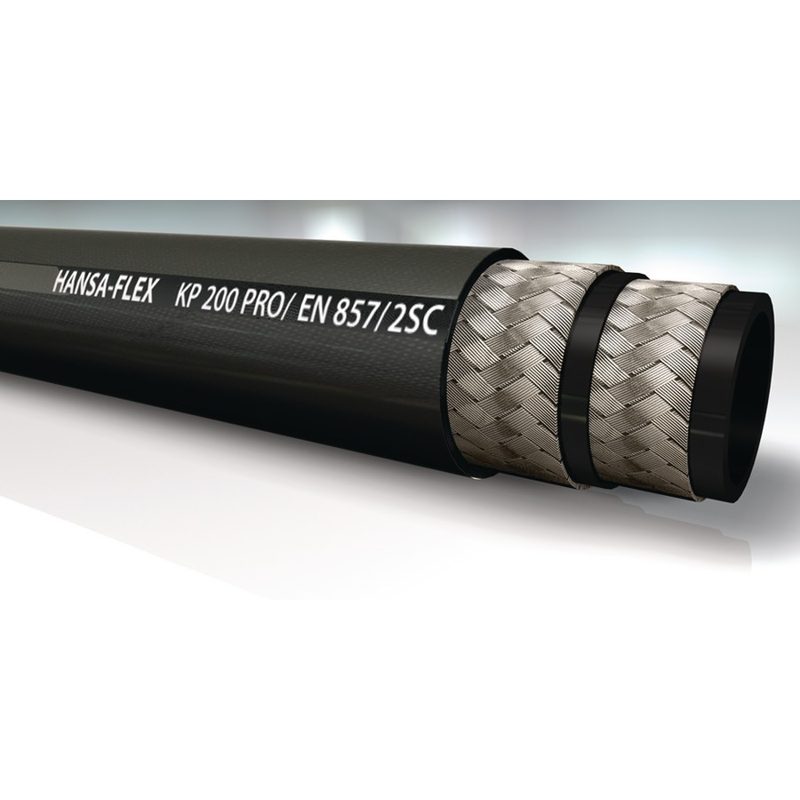

HANSA-FLEX KP 200 PRO hydraulic braided hose, supplied by Twin Hydraulics Engineering.
About this hose: Braided hose, two-layer, EN857 2SC, high abrasion resistant cover.
| Brand | HANSA-FLEX |
| Series | KP 200 PRO |
| Type | Braided Hose |
| Standard | EN 857 2SC |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | two high-tensile steel wire braids |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| KP 206 PRO | 6 | 1/4″ | 400 bar | 1,600 bar | 75 mm |
| KP 208 PRO | 8 | 5/16″ | 350 bar | 1,400 bar | 85 mm |
| KP 210 PRO | 10 | 3/8″ | 330 bar | 1,320 bar | 90 mm |
| KP 213 PRO | 12 | 1/2″ | 275 bar | 1,100 bar | 130 mm |
| KP 216 PRO | 16 | 5/8″ | 250 bar | 1,000 bar | 170 mm |
| KP 220 PRO | 19 | 3/4″ | 215 bar | 860 bar | 200 mm |
| KP 225 PRO | 25 | 1″ | 165 bar | 660 bar | 250 mm |
