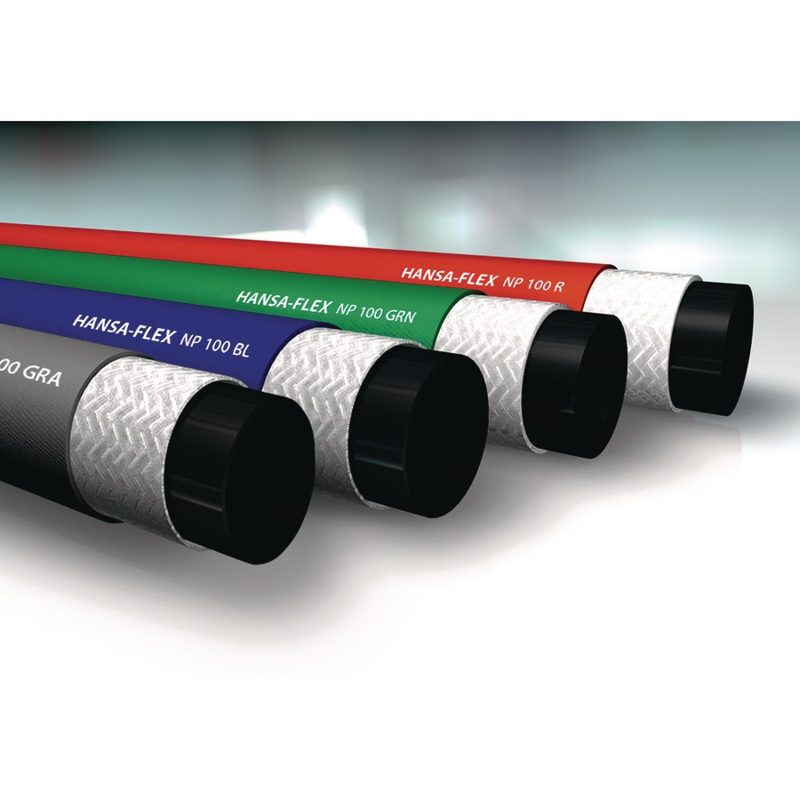

HANSA-FLEX NP 100 hydraulic push-lok hose, supplied by Twin Hydraulics Engineering.
About this hose: Push-Lok hose, available in different colours.
| Brand | HANSA-FLEX |
| Series | NP 100 |
| Type | Push-Lok Hose |
| Inner tube | NBR (nitrile) base |
| Reinforcement | one high-tensile textile braid |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| NP 106 | 6 | 1/4″ | 24 bar | 96 bar | 65 mm |
| NP 106 BL | 6 | 1/4″ | 24 bar | 96 bar | 65 mm |
| NP 106 GRA | 6 | 1/4″ | 24 bar | 96 bar | 65 mm |
| NP 106 GRN | 6 | 1/4″ | 24 bar | 96 bar | 65 mm |
| NP 106 R | 6 | 1/4″ | 24 bar | 96 bar | 65 mm |
| NP 110 | 10 | 3/8″ | 24 bar | 96 bar | 75 mm |
| NP 110 BL | 10 | 3/8″ | 24 bar | 96 bar | 75 mm |
| NP 110 GRA | 10 | 3/8″ | 24 bar | 96 bar | 75 mm |
| NP 110 GRN | 10 | 3/8″ | 24 bar | 96 bar | 75 mm |
| NP 110 R | 10 | 3/8″ | 24 bar | 96 bar | 75 mm |
| NP 113 | 12 | 1/2″ | 21 bar | 84 bar | 125 mm |
| NP 113 BL | 12 | 1/2″ | 21 bar | 84 bar | 125 mm |
| NP 113 GRA | 12 | 1/2″ | 21 bar | 84 bar | 125 mm |
| NP 113 GRN | 12 | 1/2″ | 21 bar | 84 bar | 125 mm |
| NP 113 R | 12 | 1/2″ | 21 bar | 84 bar | 125 mm |
| NP 116 | 16 | 5/8″ | 21 bar | 84 bar | 150 mm |
| NP 116 BL | 16 | 5/8″ | 21 bar | 84 bar | 150 mm |
| NP 116 GRN | 16 | 5/8″ | 21 bar | 84 bar | 150 mm |
| NP 116 R | 16 | 5/8″ | 21 bar | 84 bar | 150 mm |
| NP 120 | 19 | 3/4″ | 21 bar | 84 bar | 180 mm |
| NP 120 BL | 19 | 3/4″ | 21 bar | 84 bar | 180 mm |
| NP 120 GRN | 19 | 3/4″ | 21 bar | 84 bar | 180 mm |
| NP 120 R | 19 | 3/4″ | 21 bar | 84 bar | 180 mm |
| NP 125 | 25 | 1″ | 14 bar | 55 bar | 250 mm |
| NP 125 BL | 25 | 1″ | 14 bar | 55 bar | 250 mm |
| NP 125 GRA | 25 | 1″ | 14 bar | 55 bar | 250 mm |
| NP 125 GRN | 25 | 1″ | 14 bar | 55 bar | 250 mm |
| NP 125 R | 25 | 1″ | 14 bar | 55 bar | 250 mm |
