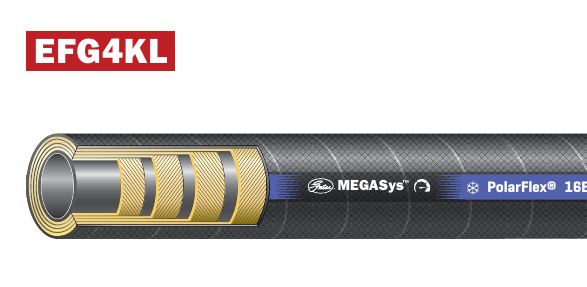

Gates EFG4KL MegaSys MegaSpiral Low Temp hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: Extremely high pressure, high-impulse hydraulic applications at extremely low temperatures.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | CR (Chloroprene) based. MSHA approved. |
| Temperature | - 57°C to +100°C constant and +121°C intermittent. |
| Max working pressure | 4000 psi |
| Standards | Exceeds ISO 3862 R12. SAE 100R12. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -6 | DN10 | 4000 psi | 16000 psi | 6EFG4KL |
| -8 | DN12 | 4000 psi | 16000 psi | 8EFG4KL |
| -12 | DN19 | 4000 psi | 16000 psi | 12EFG4KL |
| -16 | DN25 | 4000 psi | 16000 psi | 16EFG4KL |
| -20 | DN31 | 4000 psi | 16000 psi | 20EFG4KL |
