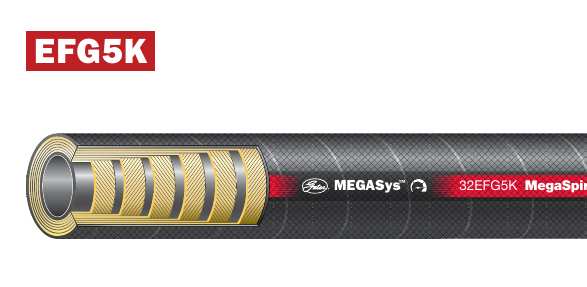

Gates EFG5K MegaSys MegaSpiral hydraulic hose, supplied by Twin Hydraulics Engineering.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | CR (Chloroprene) based. MSHA approved. |
| Temperature | -40°C to +121°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 5000 psi |
| Standards | Exceeds ISO 3862 R13. EN 856 R13. SAE 100R13. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -6 | DN10 | 5000 psi | 20000 psi | 6EFG5K |
| -8 | DN12 | 5000 psi | 20000 psi | 8EFG5K |
| -10 | DN16 | 5000 psi | 20000 psi | 10EFG5K |
| -12 | DN19 | 5000 psi | 20000 psi | 12EFG5K |
| -16 | DN25 | 5000 psi | 20000 psi | 16EFG5K |
| -20 | DN31 | 5000 psi | 20000 psi | 20EFG5K |
| -24 | DN38 | 5000 psi | 20000 psi | 24EFG5K |
| -32 | DN51 | 5000 psi | 20000 psi | 32EFG5K |
