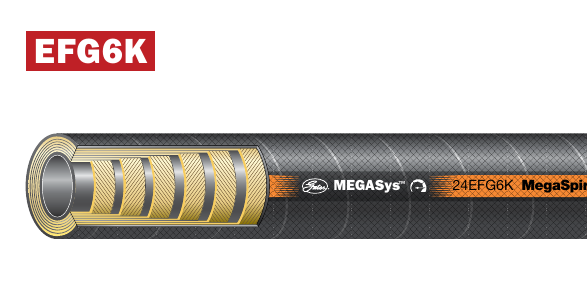

Gates EFG6K MegaSys MegaSpiral hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: Extremely high pressure, high-impulse hydraulic applications.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | CR (Chloroprene) based. MSHA approved. |
| Temperature | -40°C to +121°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 6000 psi |
| Standards | Exceeds ISO 3862 R15. SAE 100R15. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -6 | DN10 | 6000 psi | 24000 psi | 6EFG6K |
| -8 | DN12 | 6000 psi | 24000 psi | 8EFG6K |
| -10 | DN16 | 6000 psi | 24000 psi | 10EFG6K |
| -12 | DN19 | 6000 psi | 24000 psi | 12EFG6K |
| -16 | DN25 | 6000 psi | 24000 psi | 16EFG6K |
| -20 | DN31 | 6000 psi | 24000 psi | 20EFG6K |
| -24 | DN38 | 6000 psi | 24000 psi | 24EFG6K |
| -32 | DN51 | 6000 psi | 24000 psi | 32EFG6K |
