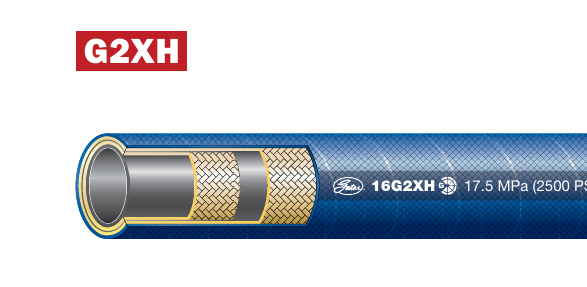

Gates G2XH MegaSys Extreme Temp hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: High-temperature, high pressure hydraulic applications such as engine compartments, foundries and steel mills.
| Brand | Gates |
| Tube | CPE (Chlorinated polyethylene) based. |
| Cover | CSM (Chlorosulfinated polyethylene) based. Blue. MSHA approved. |
| Temperature | -40°C to +150°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 6000 psi |
| Standards | Exceeds ISO 1436 2SN R2ATS. EN 853 2SN. SAE 100R2AT. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -4 | DN6 | 6000 psi | 24000 psi | 4G2XH |
| -6 | DN10 | 5000 psi | 20000 psi | 6G2XH |
| -8 | DN12 | 4250 psi | 17000 psi | 8G2XH |
| -10 | DN16 | 3625 psi | 14500 psi | 10G2XH |
| -12 | DN19 | 3100 psi | 12400 psi | 12G2XH |
| -16 | DN25 | 2500 psi | 10000 psi | 16G2XH |
| -20 | DN31 | 2250 psi | 9000 psi | 20G2XH |
| -24 | DN38 | 1800 psi | 6000 psi | 24G2XH |
| -32 | DN51 | 1500 psi | 5200 psi | 32G2XH |
