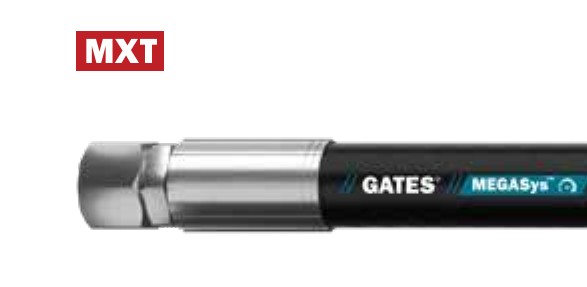

Gates MXT MegaTech hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: High pressure hydraulic applications. Easy to route and install in tight areas.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | NBR/PVC based. MSHA approved. |
| Temperature | -40°C to +100°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 6000 psi |
| Standards | Exceeds SAE 100 R16, ISO 11237 R16 and ISO 11237 R17 (-4 to -12). |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -4 | DN6 | 6000 psi | 24000 psi | 4MXT |
| -5 | DN8 | 5500 psi | 22000 psi | 5MXT |
| -6 | DN10 | 4800 psi | 19200 psi | 6MXT |
| -8 | DN12 | 4000 psi | 16000 psi | 8MXT |
| -10 | DN16 | 3625 psi | 14500 psi | 10MXT |
| -12 | DN19 | 3100 psi | 12400 psi | 12MXT |
| -16 | DN25 | 2400 psi | 9600 psi | 16MXT |
