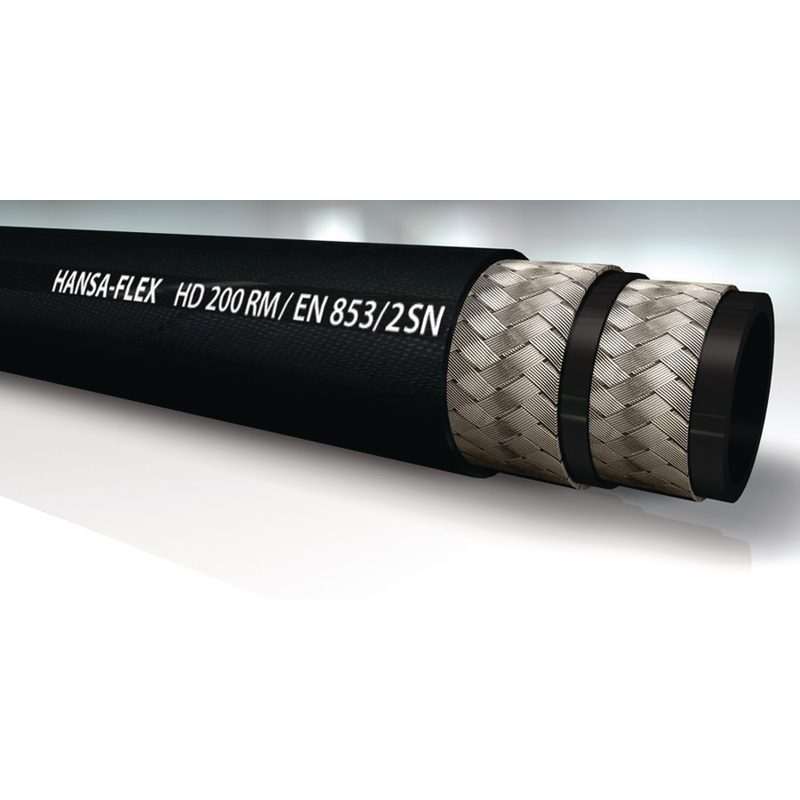

HANSA-FLEX HD 200 RM hydraulic braided hose, supplied by Twin Hydraulics Engineering.
About this hose: Braided hose, two-layer, EN853 2SN, higher abrasion resistance.
| Brand | HANSA-FLEX |
| Series | HD 200 RM |
| Type | Braided Hose |
| Standard | EN 853 2SN |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | two high-tensile steel wire braids |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| HD 206 RM | 6 | 1/4″ | 400 bar | 1,600 bar | 100 mm |
| HD 208 RM | 8 | 5/16 | 350 bar | 1,400 bar | 115 mm |
| HD 210 RM | 10 | 3/8″ | 330 bar | 1,320 bar | 125 mm |
| HD 213 RM | 12 | 1/2″ | 275 bar | 1,100 bar | 180 mm |
| HD 216 RM | 16 | 5/8″ | 250 bar | 1,000 bar | 200 mm |
| HD 220 RM | 19 | 3/4″ | 215 bar | 850 bar | 240 mm |
| HD 225 RM | 25 | 1″ | 165 bar | 650 bar | 300 mm |
| HD 232 RM | 31 | 1.1/4 | 125 bar | 500 bar | 420 mm |
| HD 240 RM | 38 | 1.1/2 | 90 bar | 360 bar | 500 mm |
| HD 250 RM | 51 | 2″ | 80 bar | 320 bar | 630 mm |
