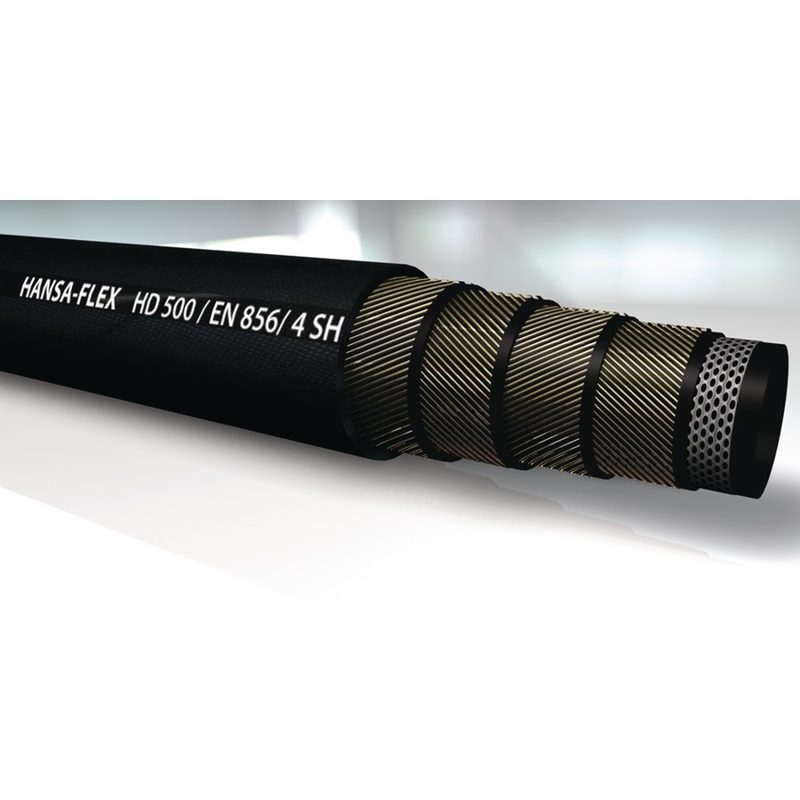

HANSA-FLEX HD 500 hydraulic spiral hose, supplied by Twin Hydraulics Engineering.
About this hose: Spiral hose, EN856 4SH.
| Brand | HANSA-FLEX |
| Series | HD 500 |
| Type | Spiral Hose |
| Standard | EN 856 4SH |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | four spirals of high-tensile steel wire |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| HD 520 | 19 | 3/4″ | 420 bar | 1,680 bar | 280 mm |
| HD 525 | 25 | 1″ | 380 bar | 1,520 bar | 340 mm |
| HD 532 | 31 | 1.1/ | 350 bar | 1,400 bar | 460 mm |
| HD 540 | 38 | 1.1/ | 290 bar | 1,160 bar | 560 mm |
| HD 550 | 51 | 2″ | 250 bar | 1,000 bar | 700 mm |
