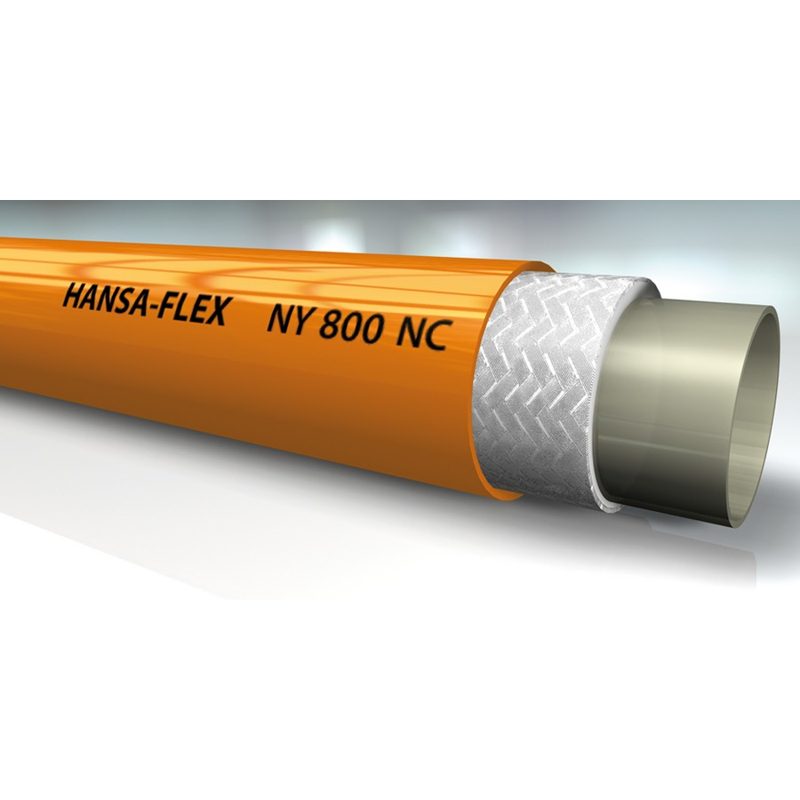

HANSA-FLEX NY 800 NC hydraulic thermoplastic hose, supplied by Twin Hydraulics Engineering.
About this hose: Thermoplastic hose, single-layer, ISO 3949/R8-2 NC, aramid braid, electrically non-conductive.
| Brand | HANSA-FLEX |
| Series | NY 800 NC |
| Type | Thermoplastic Hose |
| Standard | ISO 3949 R8 |
| Inner tube | polyester elastomer |
| Reinforcement | one aramid braid |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| NY 804 NC | 5 | 3/16″ | 350 bar | 1,400 bar | 30 mm |
| NY 806 NC | 6 | 1/4″ | 350 bar | 1,400 bar | 50 mm |
| NY 808 NC | 8 | 5/16″ | 310 bar | 1,200 bar | 55 mm |
| NY 810 NC | 10 | 3/8″ | 280 bar | 1,120 bar | 60 mm |
| NY 813 NC | 12 | 1/2″ | 245 bar | 980 bar | 80 mm |
| NY 820 NC | 19 | 3/4″ | 165 bar | 660 bar | 150 mm |
| NY 825 NC | 25 | 1″ | 140 bar | 560 bar | 200 mm |
