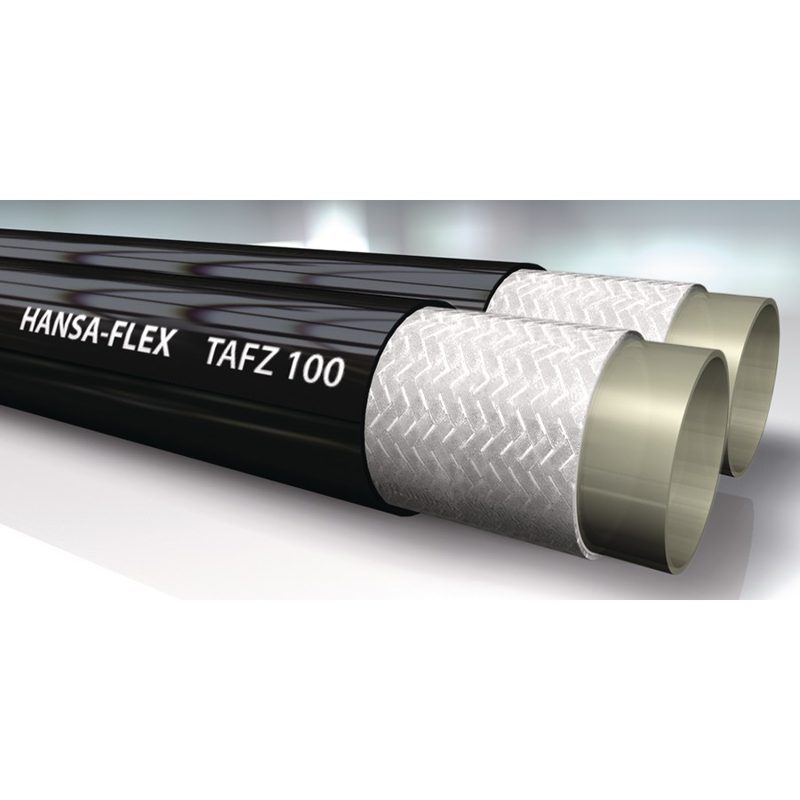

HANSA-FLEX TAFZ 100 hydraulic thermoplastic hose, supplied by Twin Hydraulics Engineering.
About this hose: Thermoplastic hose, single-layer, polyester braid, twin hose, polyamide inner tube.
| Brand | HANSA-FLEX |
| Series | TAFZ 100 |
| Type | Thermoplastic Hose |
| Inner tube | polyamide (PA) |
| Reinforcement | one polyester braid |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| TAFZ 104 | 4 | 1/8″ | — | 740 bar | 40 mm |
| TAFZ 106 | 6 | 1/4″ | — | 510 bar | 63 mm |
| TAFZ 108 | 8 | 5/16″ | — | 450 bar | 80 mm |
| TAFZ 110 | 10 | 3/8″ | — | 380 bar | 100 mm |
| TAFZ 113 | 12 | 1/2″ | — | 320 bar | 130 mm |
