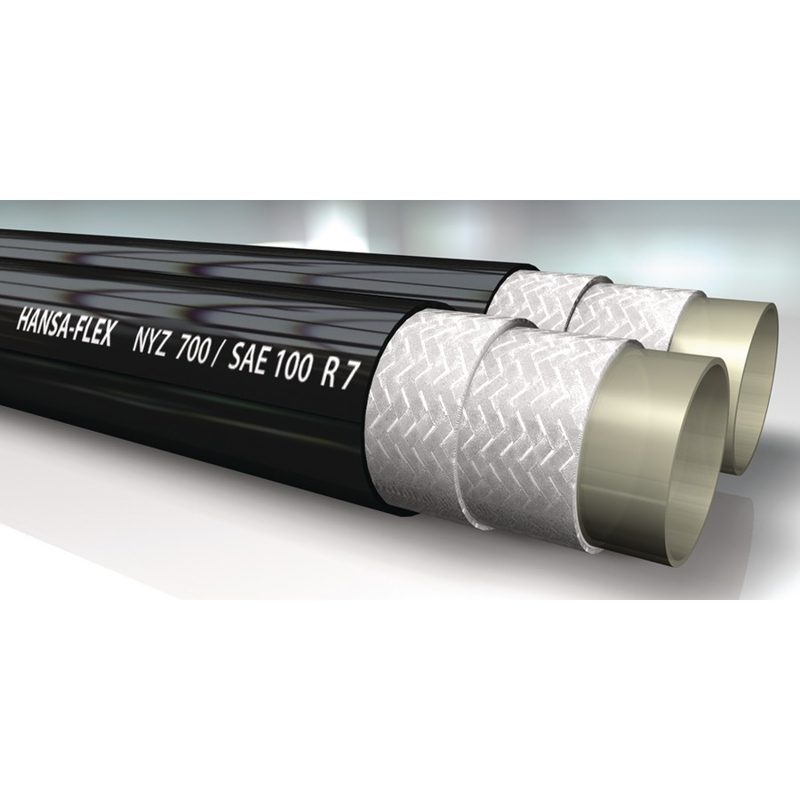

HANSA-FLEX NYZ 700 hydraulic thermoplastic hose, supplied by Twin Hydraulics Engineering.
About this hose: Thermoplastic hose, two-layer, ISO 3949/R7-1, polyester braid, twin hose.
| Brand | HANSA-FLEX |
| Series | NYZ 700 |
| Type | Thermoplastic Hose |
| Standard | ISO 3949 R7 |
| Inner tube | polyester elastomer |
| Reinforcement | two high-tensile polyester braids |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| NYZ 704 | 5 | 3/16″ | 210 bar | 840 bar | 25 mm |
| NYZ 706 | 6 | 1/4″ | 210 bar | 840 bar | 35 mm |
| NYZ 708 | 8 | 5/16″ | 190 bar | 760 bar | 45 mm |
| NYZ 710 | 10 | 3/8″ | 160 bar | 640 bar | 55 mm |
| NYZ 713 | 12 | 1/2″ | 140 bar | 560 bar | 95 mm |
