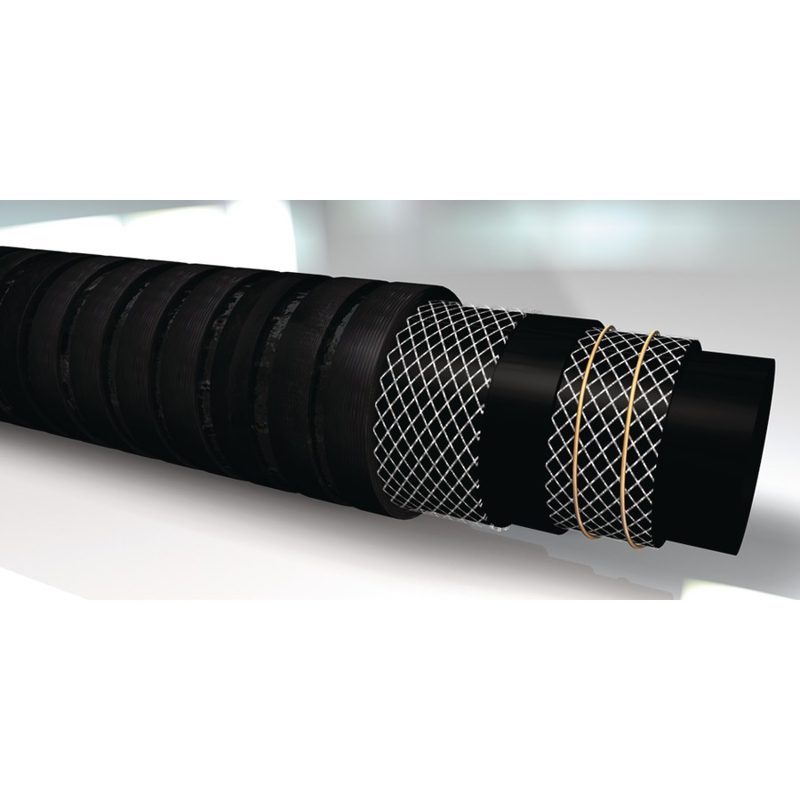

HANSA-FLEX SG 100 RI EP hydraulic suction hose, supplied by Twin Hydraulics Engineering.
About this hose: Suction hose, square corrugated cover, EPDM.
| Brand | HANSA-FLEX |
| Series | SG 100 RI EP |
| Type | Suction Hose |
| Inner tube | EPDM |
| Reinforcement | textile braids and embedded spring steel wire spiral |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| SG 120 RI EP | 19 | 3/4″ | 10 bar | 30 bar | 40 mm |
| SG 125 RI EP | 25 | 1″ | 10 bar | 30 bar | 60 mm |
| SG 132 RI EP | 31 | 1.1/4″ | 10 bar | 30 bar | 85 mm |
| SG 140 RI EP | 38 | 1.1/2″ | 10 bar | 30 bar | 110 mm |
| SG 150 RI EP | 51 | 2″ | 10 bar | 30 bar | 150 mm |
| SG 157 RI EP | 60 | 2.1/4″ | 10 bar | 30 bar | 143 mm |
| SG 163 RI EP | 63 | 2.1/2″ | 10 bar | 30 bar | 159 mm |
| SG 176 RI EP | 76 | 3″ | 10 bar | 30 bar | 191 mm |
| SG 190 RI EP | 90 | 3.1/2″ | 10 bar | 30 bar | 225 mm |
| SG 1102 RI EP | 102 | 4″ | 8 bar | 24 bar | 310 mm |
| SG 1127 RI EP | 125 | 5″ | 8 bar | 24 bar | 500 mm |
