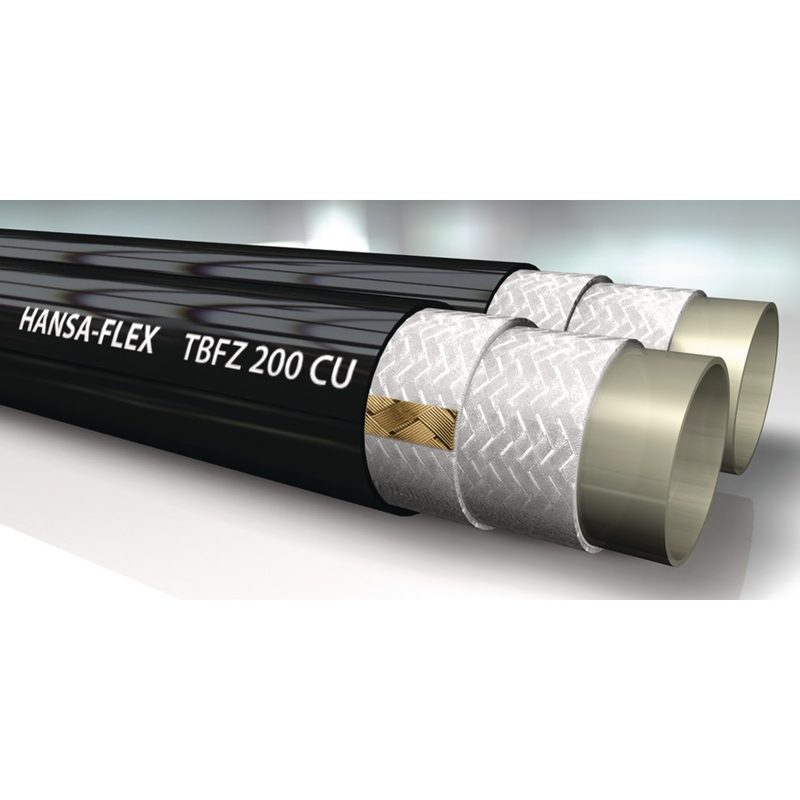

HANSA-FLEX TBFZ 200 CU hydraulic thermoplastic hose, supplied by Twin Hydraulics Engineering.
About this hose: Thermoplastic hose, two-layer, polyester braid, copper wire spiral, twin hose.
| Brand | HANSA-FLEX |
| Series | TBFZ 200 CU |
| Type | Thermoplastic Hose |
| Inner tube | polyamide (PA) |
| Reinforcement | two polyester braids with copper wire spiral for dissipating electrostatic charge |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| TBFZ 204 CU | 5 | 3/16″ | — | 970 bar | 40 mm |
| TBFZ 206 CU | 6 | 1/4″ | — | 910 bar | 63 mm |
| TBFZ 210 CU | 10 | 3/8″ | — | 680 bar | 100 mm |
