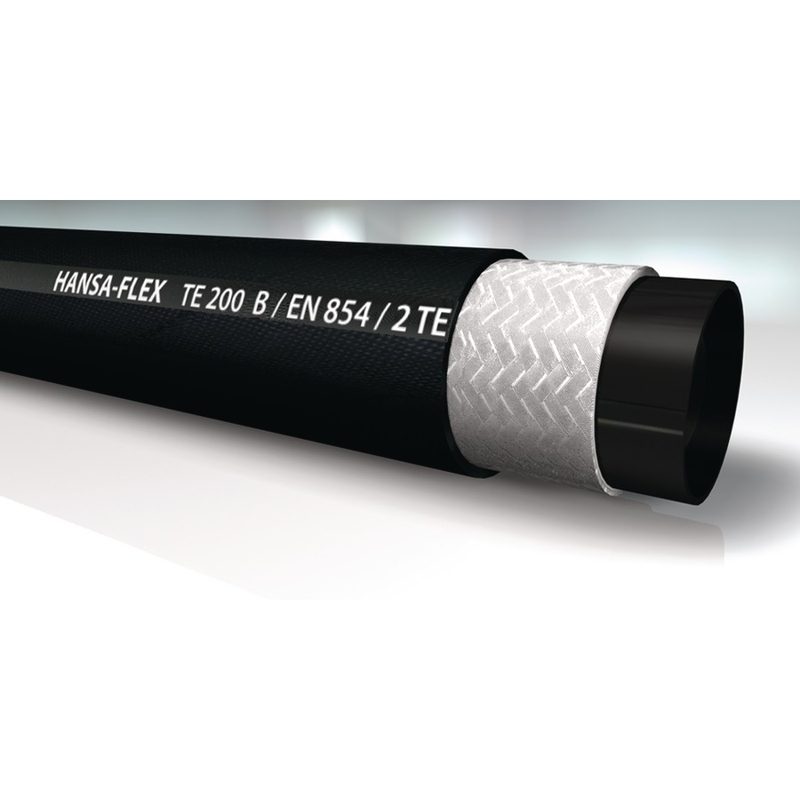

HANSA-FLEX TE 200 B hydraulic textile hose, supplied by Twin Hydraulics Engineering.
About this hose: Textile hose, EN854 2TE.
| Brand | HANSA-FLEX |
| Series | TE 200 B |
| Type | Textile Hose |
| Standard | EN 854 2TE |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | one or two textile braids |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| TE 204 B | 5 | 3/16″ | 80 bar | 320 bar | 35 mm |
| TE 206 B | 6 | 1/4″ | 75 bar | 300 bar | 40 mm |
| TE 208 B | 8 | 5/16″ | 68 bar | 272 bar | 50 mm |
| TE 210 B | 10 | 3/8″ | 63 bar | 252 bar | 60 mm |
| TE 213 B | 12 | 1/2″ | 58 bar | 232 bar | 70 mm |
| TE 216 B | 16 | 5/8″ | 50 bar | 200 bar | 90 mm |
| TE 220 B | 19 | 3/4″ | 45 bar | 180 bar | 110 mm |
| TE 225 B | 25 | 1″ | 40 bar | 160 bar | 150 mm |
| TE 232 B | 31 | 1.1/4″ | 35 bar | 140 bar | 140 mm |
