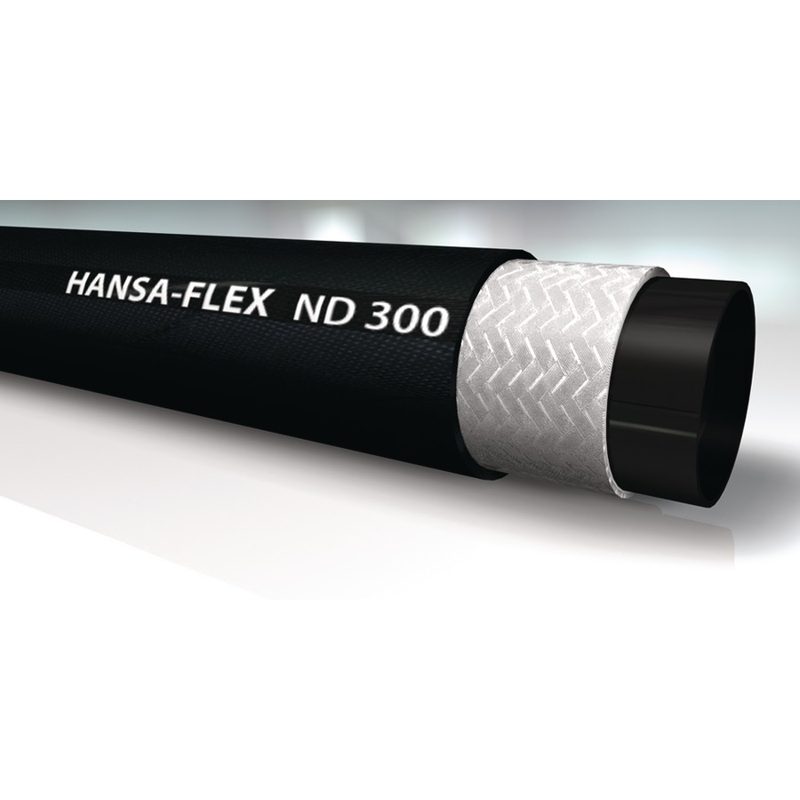

HANSA-FLEX ND 300 hydraulic textile hose, supplied by Twin Hydraulics Engineering.
About this hose: Low pressure hose with textile insert.
| Brand | HANSA-FLEX |
| Series | ND 300 |
| Type | Textile Hose |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | one textile braid |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| ND 306 | 6 | 1/4″ | 28 bar | 110 bar | 64 mm |
| ND 310 | 10 | 3/8″ | 28 bar | 110 bar | 76 mm |
| ND 313 | 12 | 1/2″ | 28 bar | 110 bar | 102 mm |
| ND 316 | 16 | 5/8″ | 24 bar | 97 bar | 127 mm |
| ND 320 | 19 | 3/4″ | 21 bar | 83 bar | 152 mm |
| ND 325 | 25 | 1″ | 13 bar | 52 bar | 230 mm |
