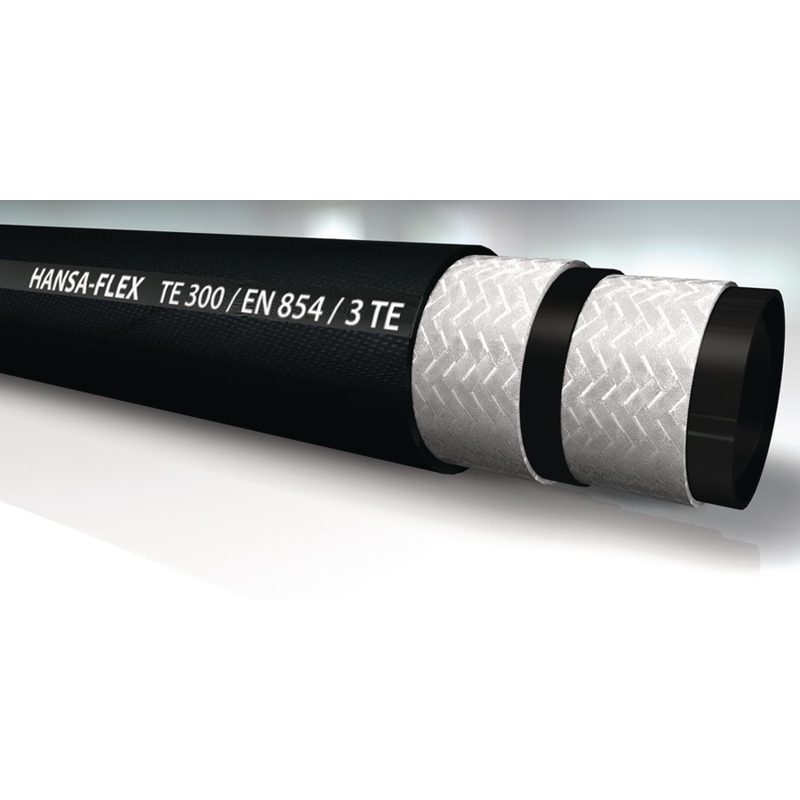

HANSA-FLEX TE 300 hydraulic textile hose, supplied by Twin Hydraulics Engineering.
About this hose: Textile hose, EN854 3TE.
| Brand | HANSA-FLEX |
| Series | TE 300 |
| Type | Textile Hose |
| Standard | EN 854 3TE |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | two textile braids |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| TE 304 | 5 | 3/16″ | 160 bar | 640 bar | 40 mm |
| TE 306 | 6 | 1/4″ | 145 bar | 580 bar | 45 mm |
| TE 308 | 8 | 5/16″ | 130 bar | 520 bar | 55 mm |
| TE 310 | 10 | 3/8″ | 110 bar | 440 bar | 70 mm |
| TE 313 | 12 | 1/2″ | 93 bar | 372 bar | 85 mm |
| TE 316 | 16 | 5/8″ | 80 bar | 320 bar | 105 mm |
| TE 320 | 19 | 3/4″ | 70 bar | 280 bar | 130 mm |
| TE 325 | 25 | 1″ | 55 bar | 220 bar | 150 mm |
| TE 332 | 31 | 1.1/4″ | 45 bar | 180 bar | 190 mm |
| TE 340 | 38 | 1.1/2″ | 40 bar | 160 bar | 240 mm |
| TE 350 | 51 | 2″ | 33 bar | 132 bar | 300 mm |
| TE 360 | 60 | 2.3/8″ | 25 bar | 100 bar | 400 mm |
