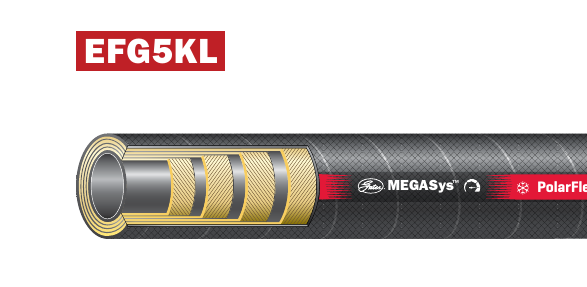

Gates EFG5KL MegaSys MegaSpiral Low Temp hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: Extremely high pressure, high-impulse hydraulic applications at extremely low temperatures.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | CR (Chloroprene) based. MSHA approved. |
| Temperature | - 57°C to +100°C constant and +121°C intermittent. For water emulsions, etc. |
| Max working pressure | 5000 psi |
| Standards | Exceeds ISO 3862 R13. SAE 100R13. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -6 | DN10 | 5000 psi | 20000 psi | 6EFG5KL |
| -8 | DN12 | 5000 psi | 20000 psi | 8EFG5KL |
| -10 | DN16 | 5000 psi | 20000 psi | 10EFG5KL |
| -12 | DN19 | 5000 psi | 20000 psi | 12EFG5KL |
| -16 | DN25 | 5000 psi | 20000 psi | 16EFG5KL |
| -20 | DN31 | 5000 psi | 20000 psi | 20EFG5KL |
| -24 | DN38 | 5000 psi | 20000 psi | 24EFG5KL |
