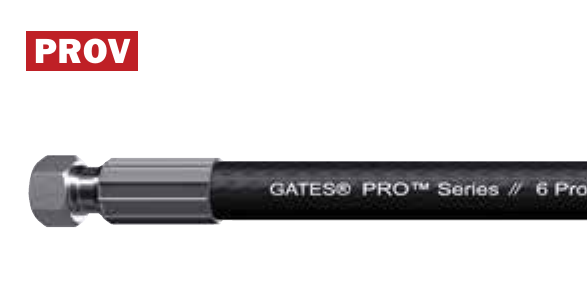

Gates PROV PRO Series hydraulic hose, supplied by Twin Hydraulics Engineering.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | NBR/PVC based. MSHA approved. |
| Temperature | -40°C to +100°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 5800 psi |
| Standards | EN 857 2SC. SAE 100 R16. ISO 11237 2SC R16. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -4 | DN6 | 5800 psi | 23200 psi | 4PROV |
| -5 | DN8 | 5000 psi | 20000 psi | 5PROV |
| -6 | DN10 | 4800 psi | 19200 psi | 6PROV |
| -8 | DN12 | 4000 psi | 16000 psi | 8PROV |
| -10 | DN16 | 3625 psi | 14500 psi | 10PROV |
| -12 | DN19 | 3100 psi | 12400 psi | 12PROV |
| -16 | DN25 | 2400 psi | 9600 psi | 16PROV |
| -4 | DN | psi | psi | 4EX1F-1 |
| -5 | DN | psi | psi | 5EX1F-1 |
| -6 | DN | psi | psi | 6EXVF-1 |
| -8 | DN | psi | psi | 8EXVF-1 |
| -10 | DN | psi | psi | 10EXVF-1 |
| -12 | DN | psi | psi | 12EX1F-1 |
| -16 | DN | psi | psi | 16EXVF-1 |
