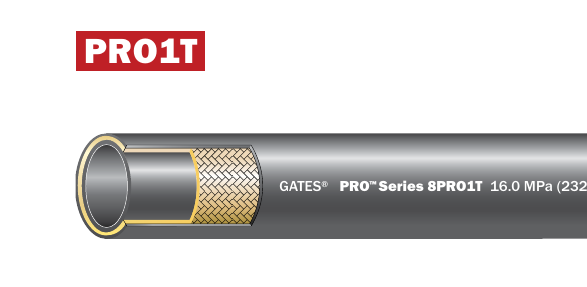

Gates PRO1T PRO Series hydraulic hose, supplied by Twin Hydraulics Engineering.
Typical applications: High pressure hydraulic applications. Compact single-wire braid, easy to route and install in tight areas.
| Brand | Gates |
| Tube | NBR (Nitrile) based. |
| Cover | SBR (Styrene-Butadiene) based. MSHA approved. |
| Temperature | -40°C to +100°C. For water emulsions, etc. see Engineering and technical data page 292. |
| Max working pressure | 3250 psi |
| Standards | EN 857 1SC. ISO 11237 1SC. |
Sizes
| Size | DN | Working | Burst | Part no. |
|---|---|---|---|---|
| -4 | DN6 | 3250 psi | 13000 psi | 4PRO1T |
| -5 | DN8 | 3100 psi | 12400 psi | 5PRO1T |
| -6 | DN10 | 2600 psi | 10400 psi | 6PRO1T |
| -8 | DN12 | 2325 psi | 9300 psi | 8PRO1T |
| -10 | DN16 | 1900 psi | 7600 psi | 10PRO1T |
| -12 | DN19 | 1525 psi | 6100 psi | 12PRO1T |
| -16 | DN25 | 1275 psi | 5100 psi | 16PRO1T |
