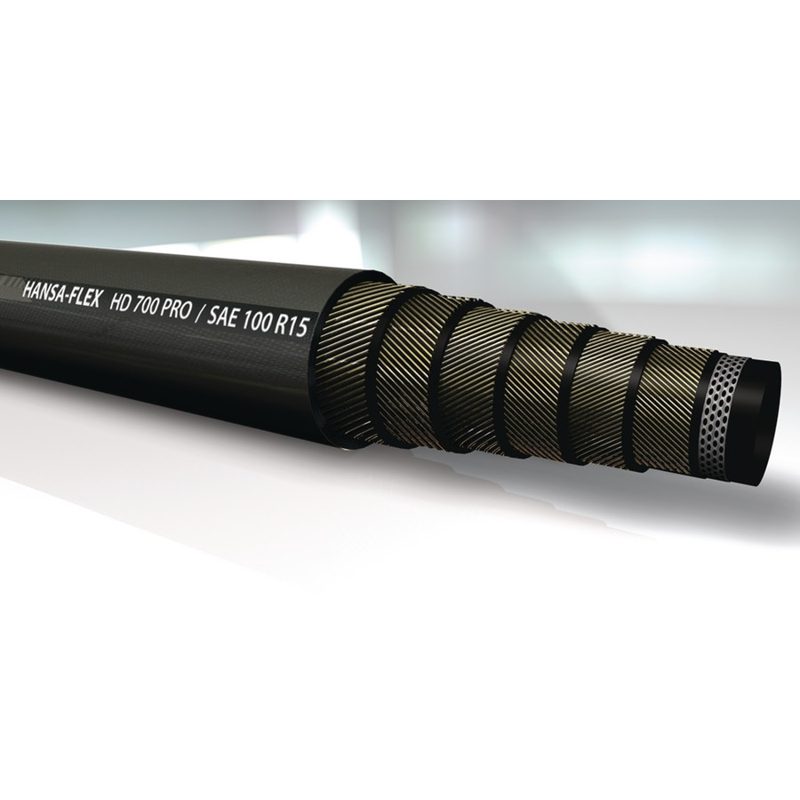

HANSA-FLEX HD 700 PRO hydraulic spiral hose, supplied by Twin Hydraulics Engineering.
About this hose: Spiral hose, SAE100 R15, high abrasion resistant cover.
| Brand | HANSA-FLEX |
| Series | HD 700 PRO |
| Type | Spiral Hose |
| Standard | SAE 100 R15 |
| Inner tube | oil resistant, synthetic rubber |
| Reinforcement | four to six high-tensile steel wire spirals |
| Availability | Ex-stock / on request — request a quote |
Available sizes
| Part | DN | Size | Working pressure | Burst pressure | Min. bend radius |
|---|---|---|---|---|---|
| HD 710 PRO | 10 | 3/8″ | 420 bar | 1,680 bar | 150 mm |
| HD 713 PRO | 12 | 1/2″ | 420 bar | 1,680 bar | 200 mm |
| HD 716 PRO | 16 | 5/8″ | 420 bar | 1,680 bar | 265 mm |
| HD 720 PRO | 19 | 3/4″ | 420 bar | 1,680 bar | 265 mm |
| HD 725 PRO | 25 | 1″ | 420 bar | 1,680 bar | 330 mm |
| HD 732 PRO | 31 | 1.1/4″ | 420 bar | 1,680 bar | 445 mm |
| HD 740 PRO | 38 | 1.1/2″ | 420 bar | 1,680 bar | 530 mm |
